Abutment Seating Jig CAD Design Service (Delivery Guide)
Precision Abutment Seating Jig CAD Design services. Eliminate clinical guesswork with our custom delivery guides. We provide overnight, print-ready STL files featuring perfect friction-grip retention and verification windows. Upsell your implant cases effortlessly. Natively designed in Exocad and 3Shape. 100% HIPAA secure.
Why Partner with China Dental Design?
- Native 3Shape & Exocad: Get 100% compatible, mill-ready CAD files with zero conversion errors.
- Strictly Secure (HIPAA): Patient data is protected via encrypted portals and strict NDAs.
- Overnight Turnaround: Upload at the end of your day, download ready-to-mill files the next morning.
- Quality Guarantee: Fast, free design revisions until you are completely satisfied with the digital fit.
Eliminate Clinical Guesswork in Implant Delivery.

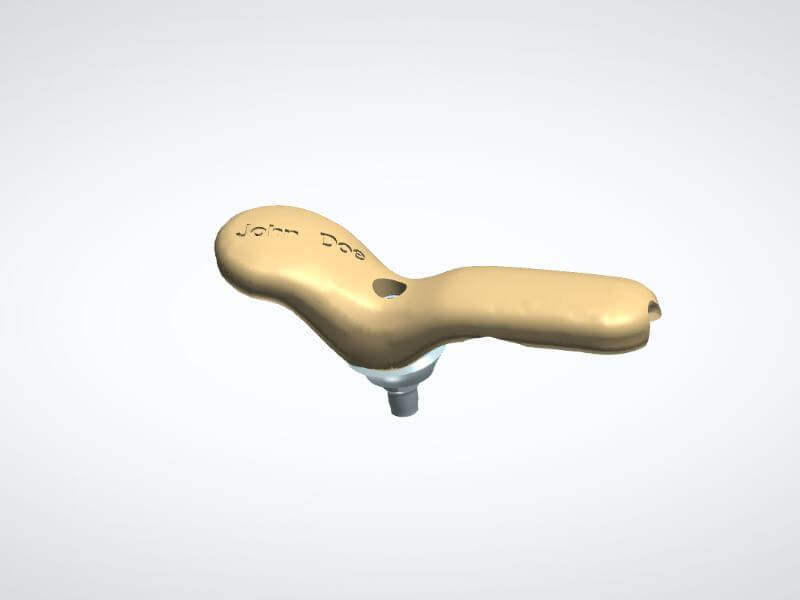

Placing a Custom Abutment can be highly stressful for the clinician. The small size, combined with blood or saliva, makes it slippery and extremely difficult to find the correct anti-rotational hex orientation. China Dental Design offers a premium Abutment Seating Jig CAD Design service (also known as an Implant Delivery Guide). This simple digital file allows you to 3D print an acrylic key that holds the abutment in the exact designed position, empowering the doctor to seat it confidently in seconds.
Technical CAD Engineering Specifications
A functional seating jig needs to hold the abutment tight enough so it doesn’t fall, but loose enough to be removed easily after the clinical screw is torqued. We digitally engineer these tolerances precisely:
Digital Design Features
- Orientation Lock: The digital jig accurately engages the anti-rotational features of the custom abutment and indexes perfectly onto adjacent teeth for ultimate stability.

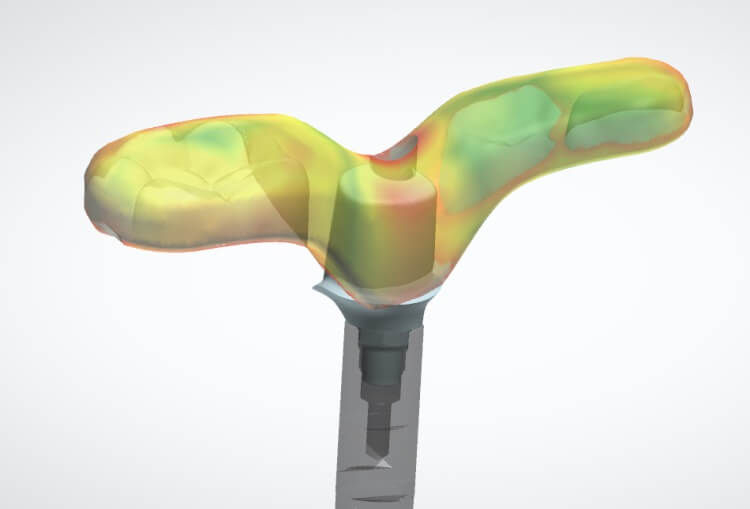

- Verification Windows: We systematically design cut-out windows so the clinician can visually verify that the jig is fully seated on the adjacent dentition.
- Screw Access Channel: A wide, unobstructed channel allows the driver to pass through the guide to torque the abutment screw without needing to remove the jig.
Printable Fit Parameters
- Offset (Clearance): Calibrated exactly for 3D printing resins (typically 0.05mm – 0.1mm) to ensure a passive fit over the adjacent teeth.
- Friction Retention: Friction-grip internal design to securely hold the titanium or zirconia abutment during transfer from the physical model to the patient’s mouth.
Advanced Clinical Applications
Adding this digital service is a massive value-add for your US dental lab, highly recommended for:
- Deep Subgingival Margins: When the soft tissue collapses, the seating jig actively pushes it aside and guides the abutment perfectly into the implant socket.
- Posterior Cases: Hard-to-reach second molar areas where the clinician’s finger dexterity is severely limited.

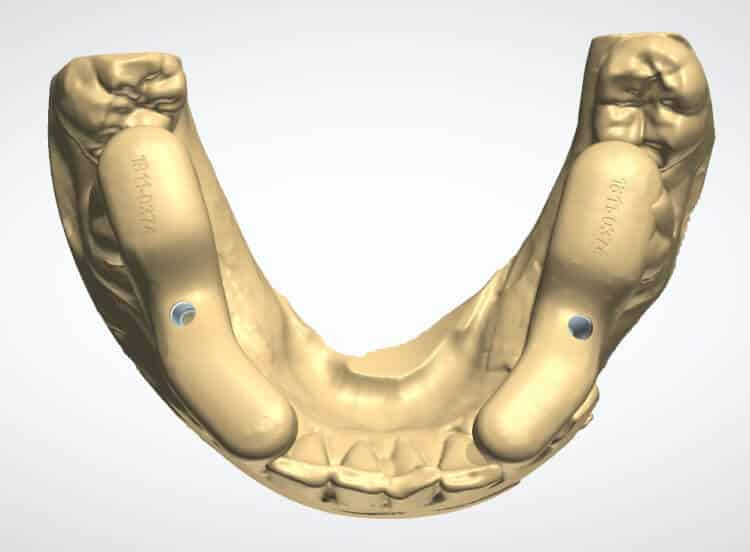

- Multi-Unit Cases: Placing multiple abutments simultaneously in perfect parallel alignment for full arch restorations.
Seamless Overnight Digital Workflow
- Secure Order: When uploading your intraoral scans to our HIPAA-compliant portal for a Custom Abutment, simply select the option to add an “Abutment Seating Jig”.
- Expert Design: We execute the Abutment Seating Jig CAD Design simultaneously with your custom abutment overnight.
- Download & Print: Download the print-ready STL file the next morning. Print instantly using your standard Surgical Guide Resin or clear Splint Resin.
Save Your Doctors Chairside Time
Add a Seating Jig to your next complex Custom Abutment case and show your doctors how much faster the seating appointment goes. It’s the ultimate B2B upsell.
