Custom Abutment CAD Design Service (Ti-Base / Hybrid)
Expert digital engineering for complex implant cases. Our overnight Custom Abutment CAD Design service delivers perfect emergence profiles and Angulated Screw Channel (ASC) solutions. 100% native Exocad/3Shape files ready for your in-house milling machines. Strict HIPAA compliance.
Why Partner with China Dental Design?
- Native 3Shape & Exocad: Get 100% compatible, mill-ready CAD files with zero conversion errors.
- Strictly Secure (HIPAA): Patient data is protected via encrypted portals and strict NDAs.
- Overnight Turnaround: Upload at the end of your day, download ready-to-mill files the next morning.
- Quality Guarantee: Fast, free design revisions until you are completely satisfied with the digital fit.
Engineered for Biology. Designed for Your Milling Machines.

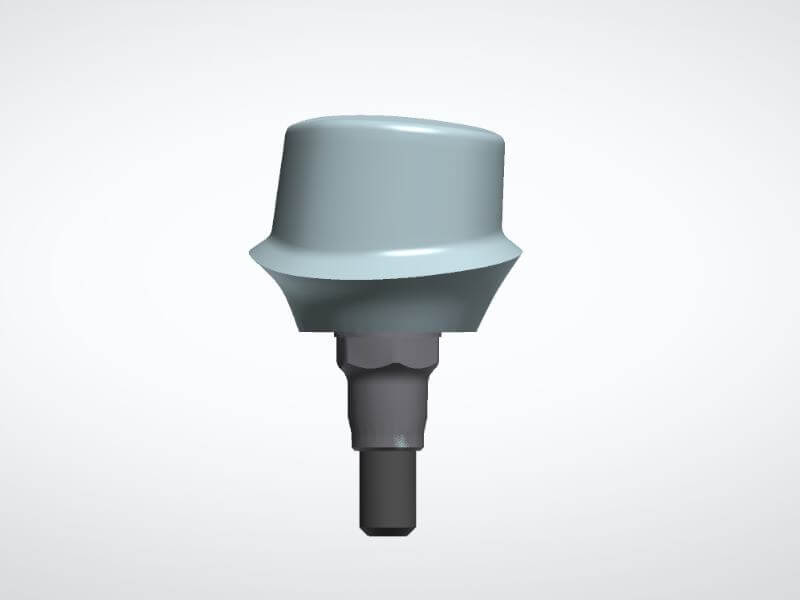

Stock abutments force the patient’s tissue to conform to a rigid circle, often leading to blanching or food traps. China Dental Design creates premium Custom Abutment CAD Designs that perfectly mimic the natural cross-section of the tooth root. Whether your US lab is milling solid Titanium abutments or cementing Zirconia on Ti-bases, our digital designs prioritize the long-term health of the peri-implant tissue while ensuring an effortless milling process.
Technical CAD Engineering Specifications
We leverage advanced implant modules within 3Shape and Exocad to solve complex angulation and aesthetic challenges for your high-value cases:
Subgingival Architecture

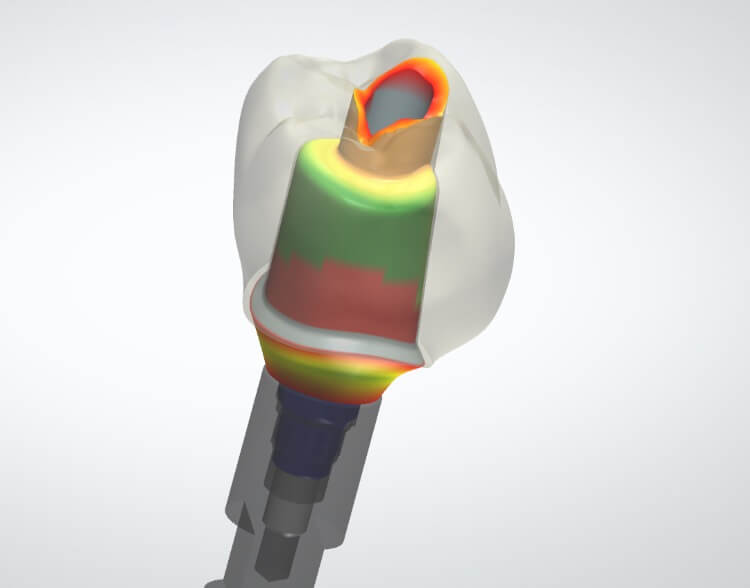

- Emergence Profile: We digitally sculpt the subgingival area (concave or convex) to support the soft tissue optimally without creating pressure points.
- Margin Placement: Precise digital margin positioning (e.g., 0.5mm subgingival facial, equigingival lingual) ensuring easy and safe cement cleanup for the clinician.
Advanced Implant Solutions

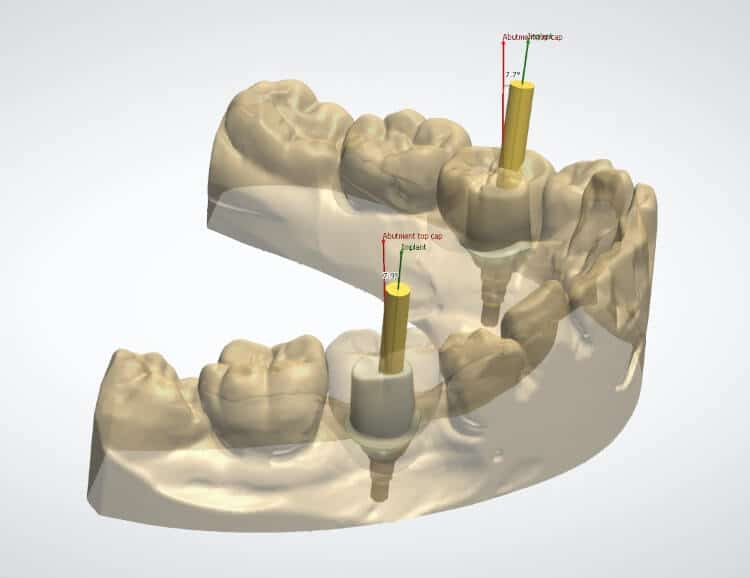

- Angulated Screw Channels (ASC): We can digitally correct the screw access hole by up to 25 degrees, moving it from the facial aesthetic zone to the lingual/occlusal aspect.
- Retention Grooves: Optional anti-rotational features designed seamlessly into the abutment core for maximum crown retention.
Comprehensive CAD Library Compatibility
Our dedicated implant CAD team holds fully updated, official libraries for all major implant systems available in the US market. Just specify your system in the digital Rx:
- Premium Systems: Nobel Biocare, Straumann, Zimmer Biomet, Dentsply Sirona (Astra/Ankylos).
- Value Systems: BioHorizons, Neodent, Osstem/Hiossen, Megagen.
- Multi-Unit & Hybrids: Advanced Custom Abutment CAD Design on MUA for complex screw-retained bridges.
Seamless Overnight Digital Workflow
- Upload Securely: Send your Scan Body scans (PLY/STL) via our 100% HIPAA-compliant portal. Ensure the scan body flat surface is captured clearly.
- Prescribe: Specify “Screw-Retained” or “Cement-Retained”, the implant brand, and your Ti-Base library preference.
- Expert Design: We execute the design overnight natively in Exocad/3Shape.
- Download & Mill: Download the production-ready STL file + Construction Info file the next morning, ready to be nested in your CAM software.
Solve Your Most Difficult Implant Cases
Have an implant placed at a severe angle? Let our experts engineer an ASC Custom Abutment to fix it perfectly.
Send your trial case directly to our CAD team:
direct@chinadentaldesign.net
