Surgical Guide CAD Design Service (Implant Planning)
High-precision Surgical Guide CAD Design and implant planning services. We deliver overnight, print-ready STL files and comprehensive drilling protocols. Fully compatible with all major guided surgery kits. 100% HIPAA secure B2B outsourcing.
Why Partner with China Dental Design?
- Native 3Shape & Exocad: Get 100% compatible, mill-ready CAD files with zero conversion errors.
- Strictly Secure (HIPAA): Patient data is protected via encrypted portals and strict NDAs.
- Overnight Turnaround: Upload at the end of your day, download ready-to-mill files the next morning.
- Quality Guarantee: Fast, free design revisions until you are completely satisfied with the digital fit.
Flawless Implant Planning. Predictable Guided Surgery.
Freehand surgery is inherently risky and stressful. China Dental Design offers elite Surgical Guide CAD Design and Implant Planning services to help US clinicians place implants exactly where the bone volume and prosthetic needs perfectly align. Stop paying exorbitant annual software licensing fees for BlueSkyBio, 3Shape Implant Studio, or CoDiagnostiX—let our offshore experts engineer and plan the complex cases for you.
Technical CAD Engineering Specifications
We digitally configure the guide parameters based exclusively on your specific Guided Surgery Kit (Drill Kit) to ensure the clinical drill never wobbles and the final depth is 100% accurate:
Guide Configuration
- Sleeve Offset (D-Value): We digitally set the exact offset (e.g., 9mm for Straumann, 10.5mm for Neodent) so the clinician’s drill stops at the exact planned depth.
- Sleeve Type Tolerance: We design for standard Metal Tubes (e.g., Steco) or “Keyless” systems (Sleeve-on-Drill) depending on your specific hardware, applying the perfect resin offset for a friction fit.
- Anchor Pins: For fully edentulous cases, we strategically place lateral fixation pins to ensure the guide remains completely rigid during surgery.
Complex Full-Arch Solutions
- Stackable Guides (All-on-X): We engineer the complete surgical stack: 1. Bone Reduction Guide → 2. Implant Placement Guide → 3. Immediate Loading Provisional.
- Dual Scan Protocol: For edentulous patients, we expertly merge the CBCT of the patient (wearing a radiopaque denture) with the CBCT of the denture alone for flawless tissue and bone alignment.
Comprehensive Deliverables
Once the case is finalized, you will receive a complete surgical package via our secure portal:

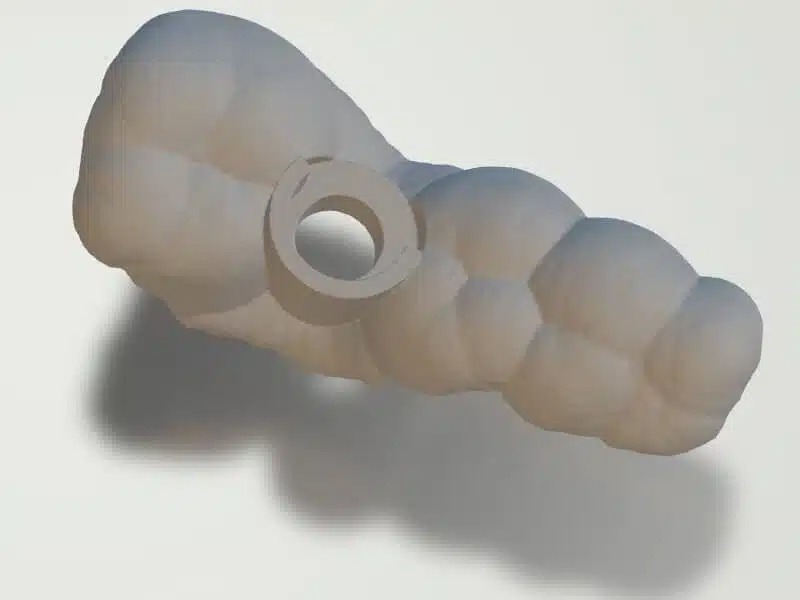

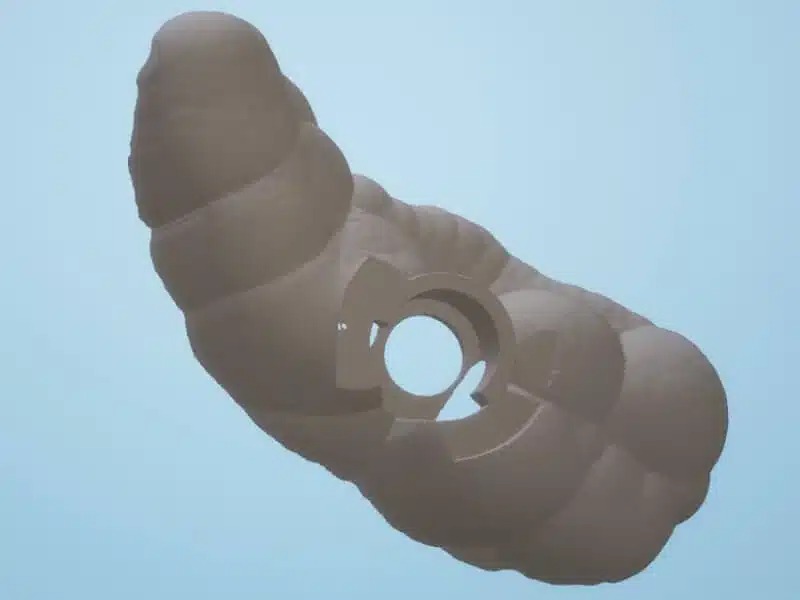

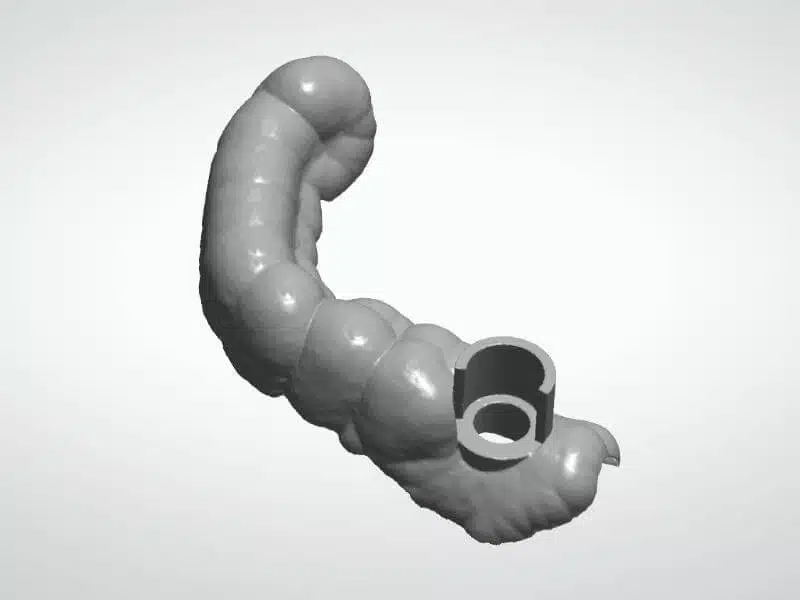

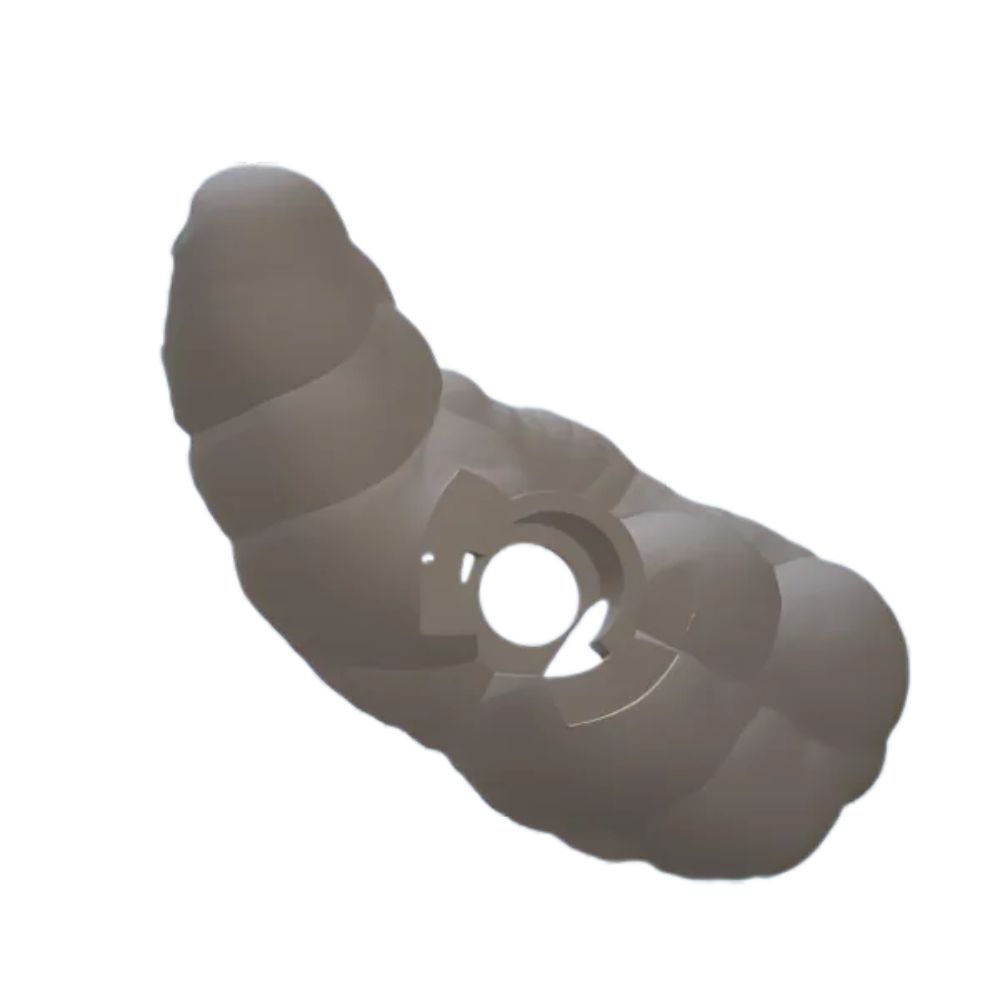

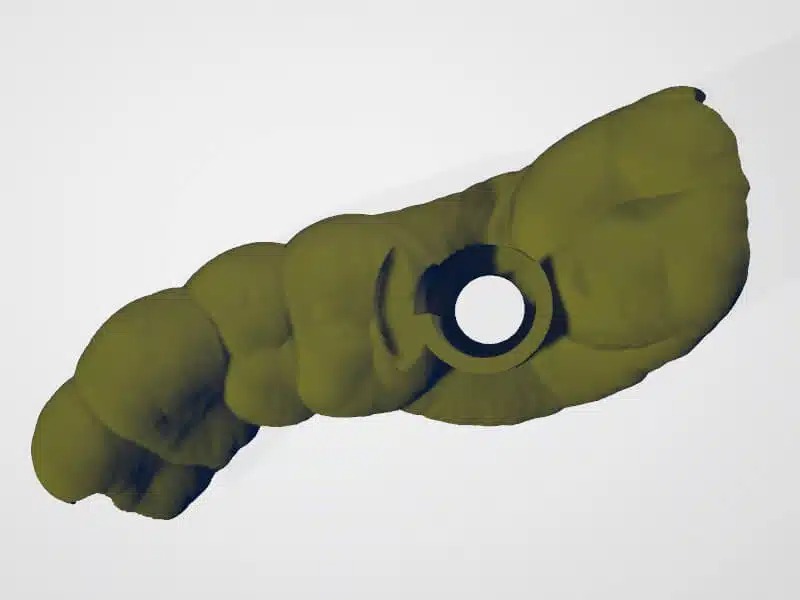

- Guide STL: The watertight, print-ready file for the surgical guide.
- Drilling Protocol (PDF): A step-by-step clinical report showing the exact drill sequence, sleeve sizes, and drill lengths required.
- Approval Viewer: A digital 3D link or video showing the proposed implant position relative to the inferior alveolar nerve and sinus cavity for ultimate peace of mind.
100% HIPAA Secure Digital Workflow
- Secure Upload: Send DICOM (CBCT) + STL (Intraoral Scan) securely via our 256-bit encrypted portal. *Note: Ensure the patient’s bite is slightly open during the CBCT scan.*
- Prescribe: Specify the Implant Brand (e.g., BioHorizons Tapered), Diameter/Length, and Guided Kit type.
- Virtual Planning: We propose the ideal implant position within 24 hours.
- Approve & Print: Once the clinician approves the digital plan, we immediately release the Surgical Guide CAD Design STL for 3D printing.
New to Guided Surgery Outsourcing?
Don’t worry about mastering complex planning software. Just tell us “Place a 4.3x10mm implant at site #19” and we will handle the precise digital engineering.
Send your trial case securely to our CAD team:
direct@chinadentaldesign.net
Frequently Asked Questions
- Do I need to buy metal sleeves?
If your clinician uses a “Keyless” kit (like Neodent GM or Megagen R2), no metal sleeves are needed; you print the guide and drill directly through the resin. If you use a generic drill kit, you will need to purchase standard metal tubes (usually 5.0mm diameter) to insert into our printed guide. - Can you design Bone Reduction Guides?
Yes. For complex full-arch or All-on-X cases, we design precision bone reduction guides to level the alveolar ridge perfectly before implant placement.
