RPD Framework CAD Design Service (SLM Metal & PEEK)
Stop waxing partial frameworks by hand. Our expert RPD Framework CAD Design services deliver overnight, production-ready STL files. Perfectly engineered for SLM metal 3D printing or 5-axis PEEK milling. Featuring flawless paths of insertion and calibrated clasp retention. 100% HIPAA secure B2B outsourcing.
Why Partner with China Dental Design?
- Native 3Shape & Exocad: Get 100% compatible, mill-ready CAD files with zero conversion errors.
- Strictly Secure (HIPAA): Patient data is protected via encrypted portals and strict NDAs.
- Overnight Turnaround: Upload at the end of your day, download ready-to-mill files the next morning.
- Quality Guarantee: Fast, free design revisions until you are completely satisfied with the digital fit.
Stop Waxing Partial Frameworks. Digitize Your RPD Production.
Traditional surveying, blocking out, and manual waxing of Removable Partial Dentures (RPDs) is a dying analog art form. It is inherently slow, structurally inconsistent, and highly labor-intensive for your technicians. China Dental Design offers a premium RPD Framework CAD Design service that flawlessly replicates the precision of a master analog technician. We digitally survey the intraoral scan, mathematically determine the optimal path of insertion, and engineer clasps for absolute retention—saving you hours of bench time.
Technical CAD Engineering Specifications
Whether your US lab is directly 3D printing in Cobalt-Chrome (SLM) or dry-milling advanced polymers like PEEK or Ulcem, we specifically adjust the CAD parameters to perfectly suit your material’s physical properties:
Digital Surveying & Block-out
- Path of Insertion (Tilt): We digitally calculate the most optimal model tilt to minimize dead zones (black triangles) while strategically engaging the most effective undercuts for superior retention.
- Undercut Engagement: We meticulously calibrate the clasp tip depth (e.g., strictly 0.25mm for rigid CoCr, or 0.5mm for flexible Gold/PEEK) to ensure the denture “snaps” in securely without causing orthodontic stress to the abutment teeth.
Advanced Connector Design
- Major Connectors: Lingual Bars, Lingual Plates, or Palatal Straps are engineered with proper clinical hygiene relief (precise offset from the soft tissue) or intimate tissue contact, exactly as prescribed.
- Finish Lines: We design razor-sharp, distinct internal and external finish lines for clean, flush acrylic junctions during your processing phase.
B2B Manufacturing Applications & Materials
| CAD Design Output | Clinical Description | Ideal Lab Manufacturing Method |
|---|---|---|
| Metal RPD Framework | Classic RPD design featuring traditional clasps (Akers, RPI) and retention mesh. | SLM 3D Printing (CoCr) or 3D Wax Printing for traditional casting. |
| Flexible / PEEK Framework | Highly esthetic metal-free design featuring slightly thicker clasps to accommodate material flexibility. | 5-Axis Milling (PEEK / Ulcem) or 3D Printing for Injection Molding (Valplast). |

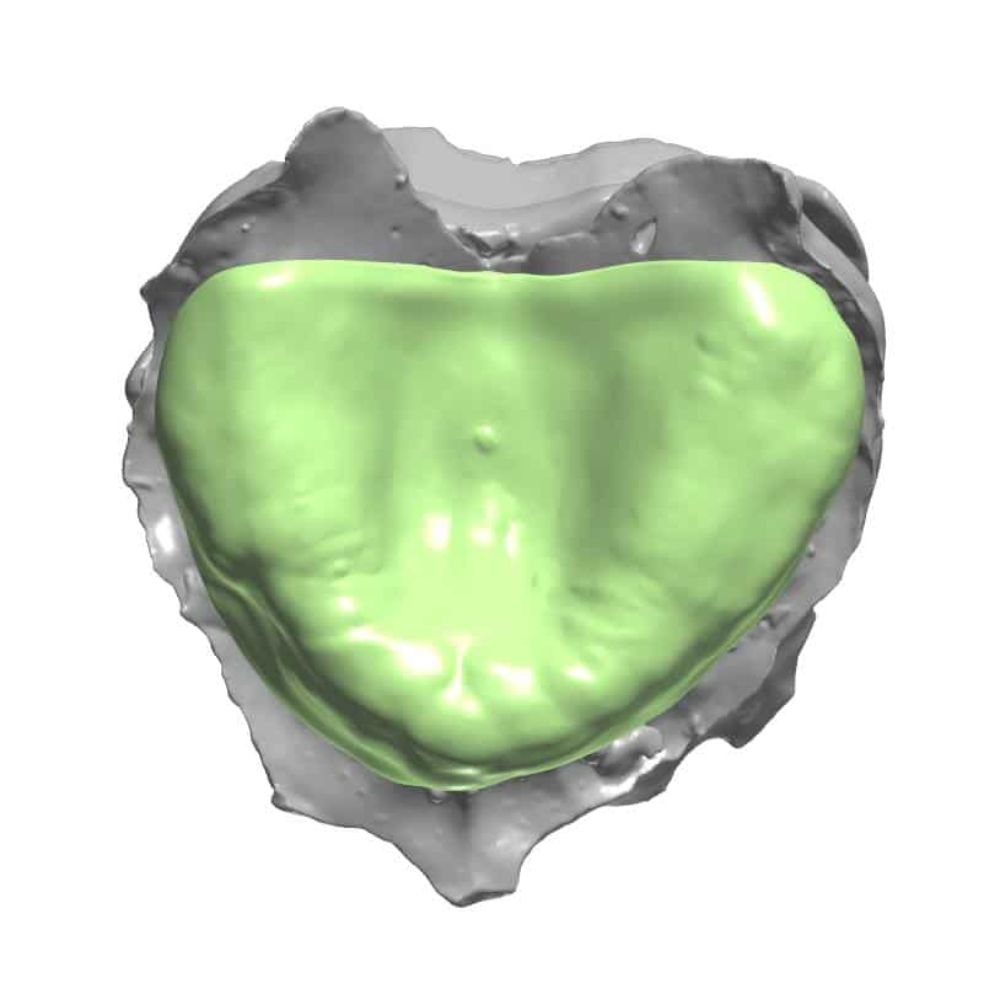

| Digital Record Base | A highly accurate, rigid base plate designed specifically for mounting wax rims and taking bite registrations. | SLA/DLP Resin 3D Printing (Standard Draft Resin). |
100% HIPAA Secure Overnight Workflow
- Secure Upload: Upload Model Scans or direct Intraoral Scans (Upper/Lower/Bite) via our 256-bit encrypted portal. *Note: Ensure the clinician has captured the vestibular depth completely.*
- Prescribe: Specify your exact design preferences (e.g., “Kennedy Class I, Lingual Bar, RPI clasps on #20 and #29”).
- Expert Design: We execute the RPD Framework CAD Design natively in 3Shape or Exocad overnight.
- Download & Produce: Download the STL file the next morning. Print directly on your SLM metal printer or mill your PEEK disc immediately.
Transitioning to SLM Metal Printing?
Direct metal 3D printing (SLM) requires highly specific sintered support structures to prevent the framework from warping during the printing and cooling phase. We can digitally engineer these custom supports into your STL design upon request.
Set up your secure RPD outsourcing today:
