Implant Planning CAD Design & Surgical Guide Service
Expert Implant Planning CAD Design services for US dental labs and clinicians. We seamlessly merge CBCT and intraoral scans to deliver perfectly calibrated, print-ready surgical guide STLs and comprehensive PDF drill reports. Prevent prosthetic complications before surgery begins. 100% HIPAA secure B2B outsourcing.
Why Partner with China Dental Design?
- Native 3Shape & Exocad: Get 100% compatible, mill-ready CAD files with zero conversion errors.
- Strictly Secure (HIPAA): Patient data is protected via encrypted portals and strict NDAs.
- Overnight Turnaround: Upload at the end of your day, download ready-to-mill files the next morning.
- Quality Guarantee: Fast, free design revisions until you are completely satisfied with the digital fit.
Implant Placement Engineered with Digital Precision.
Freehand surgery relies on dangerous “eyeballing” to determine angulation, which frequently leads to severe prosthetic complications, compromised bone levels, or nerve damage. China Dental Design offers a comprehensive B2B Implant Planning CAD Design and Surgical Guide service. We expertly merge the patient’s CBCT (DICOM) and Intraoral Scan (STL) to digitally visualize the exact bone volume, map the nerve position, and verify the final restorative outcome before the clinician even touches a scalpel.
Technical CAD Engineering Specifications

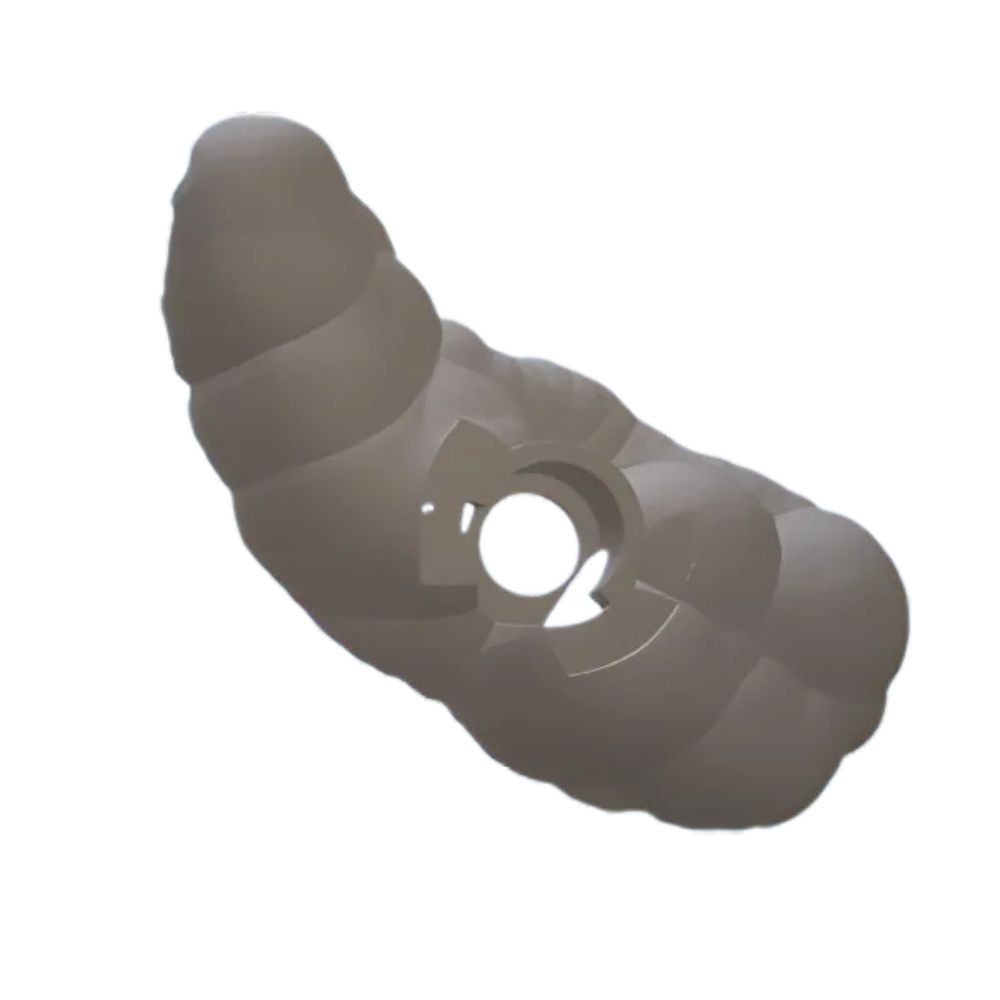

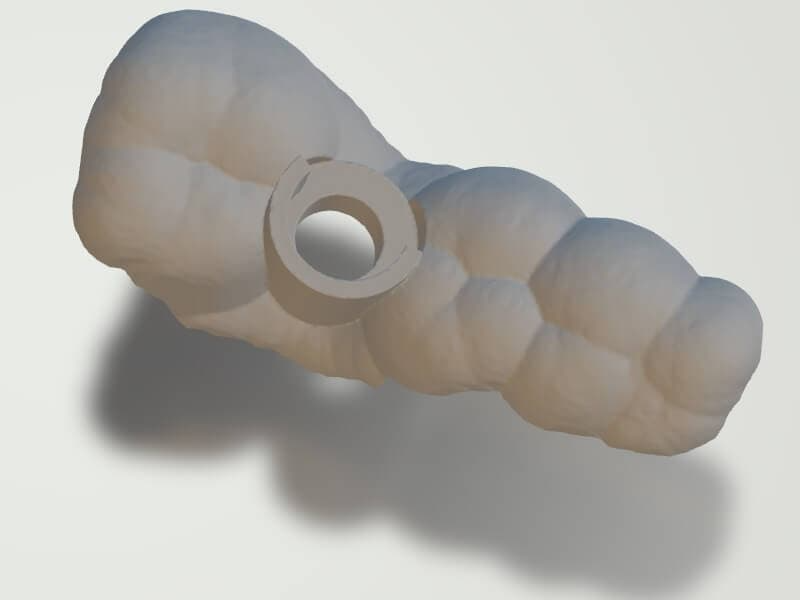

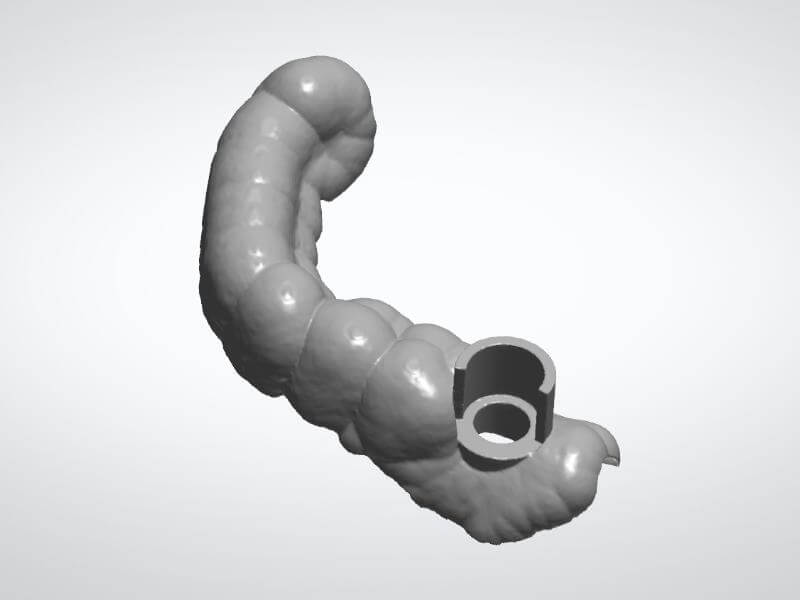

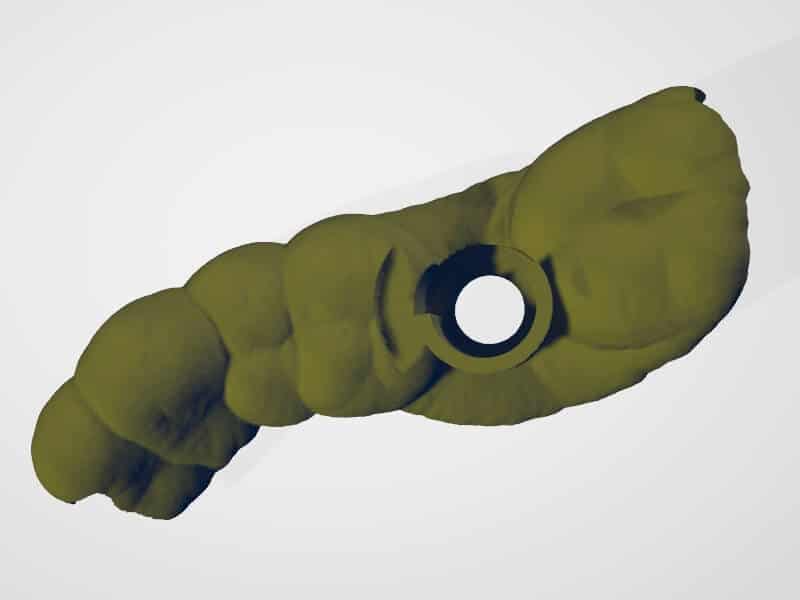

A surgical guide is entirely useless without flawlessly calibrated digital settings. We engineer the Implant Planning CAD Design parameters to perfectly match your specific in-house surgical drill kit:
Surgical Kit Configuration
- Offset Settings (D-Value): We precisely adjust the digital offset (e.g., 9.0mm, 10.5mm) required by your specific drill keys so the clinical depth stop engages flawlessly.
- Sleeve Tolerances:
- Metal Sleeves: Standard hole calibration (e.g., 5.1mm) for inserting Steco tubes.
- Keyless Systems: Optimized friction-fit printing parameters for Sleeve-on-Drill systems like Neodent GM, Straumann, or Osstem.
- Verification Windows: Lateral inspection windows are engineered into the guide to allow visual verification of complete seating on the dentition.
Advanced Guide Types
- Pilot Guide: A highly restrictive guide designed exclusively for the initial 2.0mm osteotomy drill.
- Fully Guided: Absolute control over depth, angulation, and positioning for the entire drill sequence, culminating in guided implant insertion.
- Stackable Guides: For complex full-arch All-on-X cases (Layer 1: Bone Reduction → Layer 2: Implant Placement → Layer 3: Provisional Loading).
The Critical Deliverable: The Drill Report
We don’t just send you a raw STL file; we deliver a complete surgical roadmap. Every Implant Planning CAD Design case includes a highly detailed PDF Drill Protocol Report containing:
- Implant Specifications: Exact Brand, Diameter, and Length planned.
- Drill Sequence: Clear instructions indicating exactly which drill key and spoon to use for each step of the osteotomy.
- Sleeve Offset: Final mathematical verification of the required D-value.
- Cross-Sectional Screenshots: High-resolution clinical views verifying the planned implant position relative to vital anatomical structures.
100% HIPAA Secure Overnight Digital Workflow
- Secure Upload: Upload DICOM (CBCT) + STL (Intraoral Scan) via our 256-bit encrypted portal. *Clinical Note: Instruct the patient to keep their bite slightly open during the CBCT to cleanly separate the arches.*
- Prescribe: Specify the Implant System (e.g., “BioHorizons Tapered Internal”) and your exact Guided Kit Brand.
- Digital Approval: We send a highly secure, interactive 3D video link of the proposed plan. You or your doctor approve it or request specific clinical changes.
- Download & Print: Upon approval, we release the print-ready Surgical Guide STL instantly.
Planning a Fully Edentulous Case?
Remember to utilize the clinical “Dual Scan Protocol” (Scan 1: Patient wearing their radiopaque denture with fiducial markers. Scan 2: The denture scanned completely alone). Contact our CAD support team for a free protocol guide.
Set up your secure implant planning pipeline today:
